Description
Neurostar offers tethered, multiplexer and wireless recording and stimulation solutions.
Multichannel Solutions
Neurostar offers following multichannel solutions:
- Tethered Recordings
- Mutliplexed Recordings
♦ reduced number of wires avoids the use of expensive commutators - Wireless Recordings
- Dual Wireless Recordings
♦ allows for 2 animals in the same cage - Multichannel Stimulation
- Multichannel Wireless Stimulation
Wireless Recordings

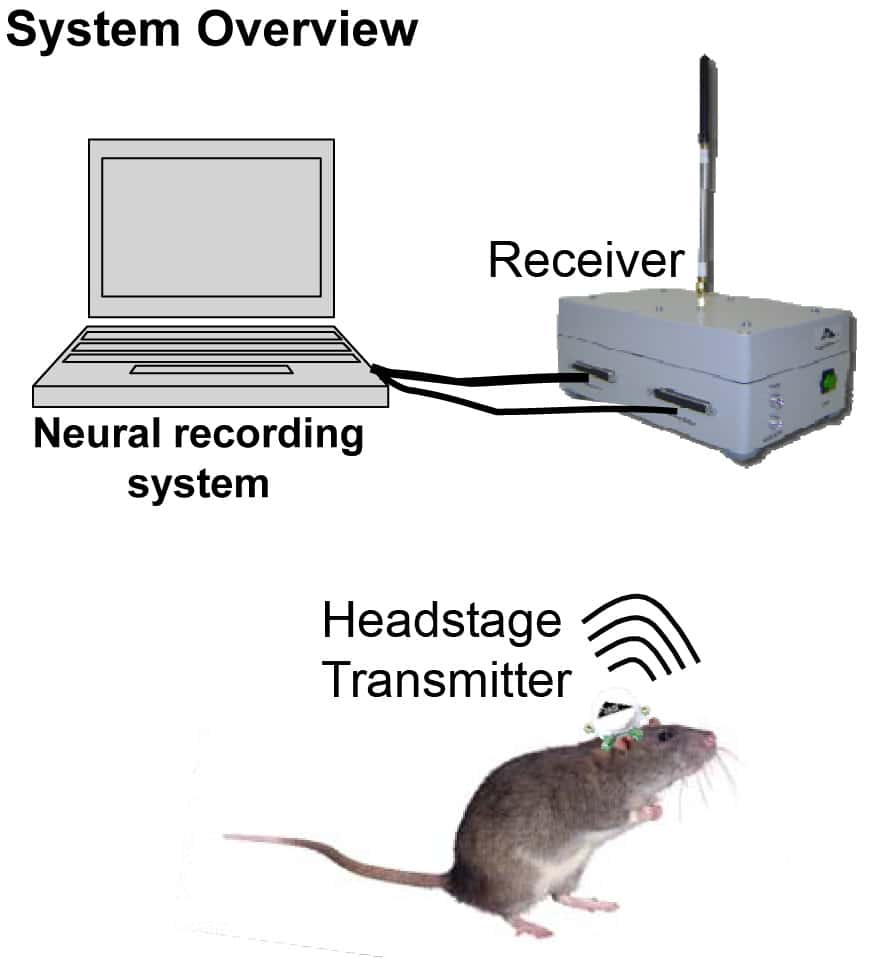

No longer do experiments have to be constrained by wiring a test subject to the recording system. The complete system is comprised of a wireless headstage transmitter with integrated battery, RF signal receiver/baseband demodulator, power supply and all required cables. With an effective range of 3 meters, this system provides a wireless connection between the implanted electrodes and the data recording system.
Headstage features
- Wireless operations across 3 meters
- Operates in unlicensed radioband below FCC limits
- Available with 5, 16, 32, 64 channels
- Factory configurable voltage gain is 600 and 120.
- Rechargeable battery power with 2.5 hours operating time
- Bandpass filtering per channel 0.8 Hz to 6 kHz typical
- 50 kHz samplingrate per channel
- Weight: (depending on number of channels) 2.7 grams (okay for mice) to 4.8 grams
