E Series with Handles

Description

Primary applications include intracellular recording and microiontophoresis

  • Machined from the highest quality acrylic, annealed and then vapor polished
  • Capillary glass holders are bored for specific glass sizes (e.g. 1.0, 1.2, 1.5, and 2.0 mm)
  • Holders include a 6.3 mm diameter by 6.3 cm long handle
  • Holders are available for virtually any headstage
  • Ag/AgCl Pellet and Ag Wire styles available
  • Holders can include a port to apply pressure or suction
  • Holders can be vented to equalize internal pressure

Spécifications

Wire/Pellet Connector Port Glass OD (mm) Model Order No. Image
Pellet 2 mm Jack No 1.0 E45P-F10NH 64-1023
1.2 E45P-F12NH 64-1024
1.5 E45P-F15NH 64-1025
1.7 E45P-F17NH Call
2.0 E45P-F20NH 64-1026
Yes 1.0 E45P-F10PH 64-1039
1.2 E45P-F12PH 64-1040
1.5 E45P-F15PH 64-1041
1.7 E45P-F17PH Call
2.0 E45P-F20PH 64-1042
2 mm Pin No 1.0 E45P-M10NH 64-1031
1.2 E45P-M12NH 64-1032
1.5 E45P-M15NH 64-1033
1.6 E45P-M20NH 64-1034
Yes 1.0 E45P-M10PH 64-1047
1.2 E45P-M12PH 64-1048
1.5 E45P-M15PH 64-1049
2.0 E45P-M20PH 64-1050

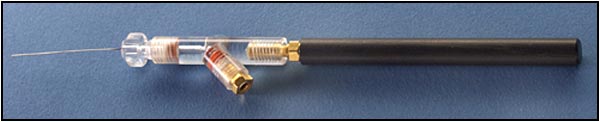

Wire 2 mm Jack No 1.0 E45W-F10NH 64-1019
1.2 E45W-F12NH 64-1020
1.5 E45W-F15NH 64-1021
1.7 E45W-F17NH 64-1370
2.0 E45W-F20NH 64-1022
Yes 1.0 E45W-F10PH 64-1035
1.2 E45W-F12PH 64-1036
1.5 E45W-F15PH 64-1037
1.7 E45W-F17PH Call
2.0 E45W-F20PH 64-1038
2 mm Pin No 1.0 E45W-M10NH 64-1027
1.2 E45W-M12NH 64-1028
1.5 E45W-M15NH 64-1029
2.0 E45W-M20NH 64-1030
Yes 1.0 E45W-M10PH 64-1043
1.2 E45W-M12PH 64-1044
1.5 E45W-M15PH 64-1045
2.0 E45W-M20PH 64-1046
2 mm Jack Vent 1.0 E45W-F10VH 64-1051
1.2 E45W-F12VH 64-1052
1.5 E45W-F15VH 64-1053
1.7 E45W-F17VH 64-1372
2.0 E45W-F20VH 64-1054
