E Series with 90° Body

Description

Primary applications include: 1) Intracellular Recording and 2) Microiontophoresis

  • Machined from the highest quality acrylic, annealed and then vapor polished
  • Capillary glass holders are bored for specific glass sizes (e.g. 1.0, 1.2, 1.5, and 2.0 mm)
  • Holders are available for virtually any headstage
  • Ag/AgCl Pellet and Ag Wire styles available
  • Holders can include a port to apply pressure or suction
  • Holders can be vented to equalize internal pressure

Spécifications

Wire/Pellet Connector Port Glass OD (mm) Model Order No. Image
Pellet 2 mm Pin No 1.0 ERP-M10N 64-0940
1.2 ERP-M12N 64-0941
1.5 ERP-M15N 64-0942
1.7 ERP-M17N 99-0126
2.0 ERP-M20N 64-0943

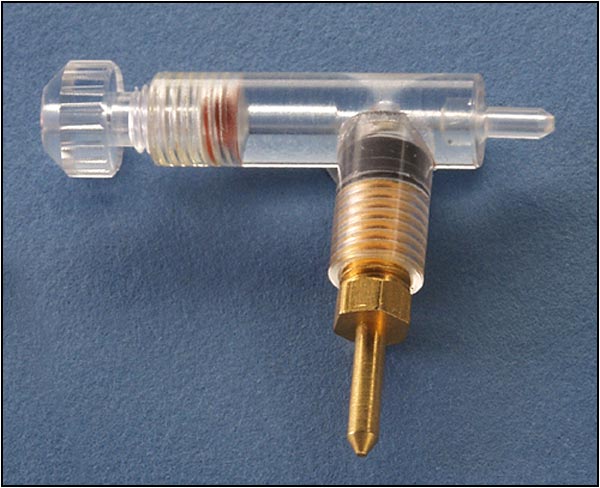

Yes 1.0 ERP-M10P 64-0944
1.2 ERP-M12P 64-0945
1.5 ERP-M15P 64-0946
1.7 ERP-M17P Call
2.0 ERP-M20P 64-0947
2 mm Jack No 1.0 ERP-F10N 64-0932
1.2 ERP-F12N 64-0933
1.5 ERP-F15N 64-0934
1.7 ERP-F17N Call
2.0 ERP-F20N 64-0935
Yes 1.0 ERP-F10P 64-0936
1.2 ERP-F12P 64-0937
1.5 ERP-F15P 64-0938
1.7 ERP-F17P Call
2.0 ERP-F20P 64-0939
Wire/Pellet Connector Port Glass OD (mm) Model Order No. Image
Wire 2 mm Pin No 1.0 ERW-M10N 64-0956
1.2 ERW-M12N 64-0957
1.5 ERW-M15N 64-0958
1.7 ERW-M17N Call
2.0 ERW-M20N 64-0959
Yes 1.0 ERW-M10P 64-0960
1.2 ERW-M12P 64-0961
1.5 ERW-M15P 64-0962
1.7 ERW-M17P Call
2.0 ERW-M20P 64-0963
2 mm Jack No 1.0 ERW-F10N 64-0948
1.2 ERW-F12N 64-0949
1.5 ERW-F15N 64-0950
1.7 ERW-F17N Call
2.0 ERW-F20N 64-0951
Yes 1.0 ERW-F10P 64-0952
1.2 ERW-F12P 64-0953
1.5 ERW-F15P 64-0954
1.7 ERW-F17P Call
2.0 ERW-F20P 64-0955
