ME Series: Electrical and Pressure Applications

Description

The ME SERIES holders are designed for applying pressure or suction to an electrode or pipette while also maintaining an electrical connection.

• Intracellular and Extracellular Recording
• Microinjection
• Microiontophoresis
• Holders with T port are compatible with Picospritzer® system made by General Valve

Spécifications

Coupling	Port	Glass OD (mm)	Model	Order No.	Image
Wire	1/16″ Barb	1.0	MEW-F10A	64-1220
		1.2	MEW-F12A	64-1221
		1.5	MEW-F15A	64-1222
		1.7	MEW-F17A	Call
		2.0	MEW-F20A	64-1223
		1.0	MEW-M10A	64-1240
		1.2	MEW-M12A	64-1241
		1.5	MEW-M15A	64-1242
		1.7	MEW-M17A	Call
		2.0	MEW-M20A	64-1243
	3/32″ Barb	1.0	MEW-F10B	64-1224
		1.2	MEW-F12B	64-1225
		1.5	MEW-F15B	64-1226
		1.7	MEW-F17B	Call
		2.0	MEW-F20B	64-1227
		1.0	MEW-M10B	64-1244
		1.2	MEW-M12B	64-1245
		1.5	MEW-M15B	64-1246
		1.7	MEW-M17B	Call
		2.0	MEW-M20B	64-1247
	Male Luer	1.0	MEW-F10ML	64-1232
		1.2	MEW-F12ML	64-1233
		1.5	MEW-F15ML	64-1234
		1.7	MEW-F17ML	Call
		2.0	MEW-F20ML	64-1235
		1.0	MEW-M10ML	64-1252
		1.2	MEW-M12ML	64-1253
		1.5	MEW-M15ML	64-1254
		1.7	MEW-M17ML	Call
		2.0	MEW-M20ML	64-1255
	Female Luer	1.0	MEW-F10FL	64-1228
		1.2	MEW-F12FL	64-1229
		1.5	MEW-F15FL	64-1230
		1.7	MEW-F17FL	Call
		2.0	MEW-F20FL	64-1231
		1.0	MEW-M10FL	64-1248
		1.2	MEW-M12FL	64-1249
		1.5	MEW-M15FL	64-1250
		1.7	MEW-M17FL	Call
		2.0	MEW-M20FL	64-1251

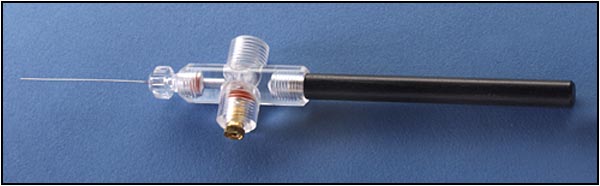

	Threaded 1/4-28	1.0	MEW-F10T	64-1236
		1.2	MEW-F12T	64-1237
		1.5	MEW-F15T	64-1238
		1.7	MEW-F17T	Call
		2.0	MEW-F20T	64-1239
		1.0	MEW-M10T	64-1256
		1.2	MEW-M12T	64-1257
		1.5	MEW-M15T	64-1258
		1.7	MEW-M17T	Call
		2.0	MEW-M20T	64-1259
