CMA 11 – SNC Rat

Catégorie :

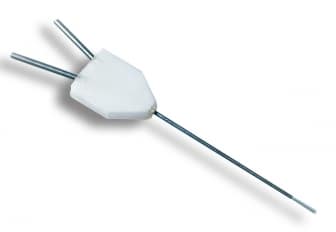

The CMA 11 Microdialysis Probe possesses greater spatial resolution and causes less tissue damage due to its reduced size. The probe has a cuprophane membrane with an outside diameter of 0.24 mm. The outer steel shaft diameter is 0.38 mm. The inner cannula is constructed of fused silica coated with polyimid. The inlet/outlet capillaries are mounted in a white plastic body matched to the size of a corresponding guide cannula. Once implanted, the probe sits tightly in the guide cannula´s capsule without the need for screwing or cementing. FEP tubing is connected to the probe using tubing adaptors.Also exist in ß-irradiated.

Technical information for CMA 11

  • Membrane lenght Cuprophane : 1, 2, 3 and 4 mm
  • Membrane diameter : 0.24 mm
  • Stainless steel shaft diameter : 0.38 mm
  • Shaft length : 14 mm
  • Inlet internal volume : negligible
  • Outlet internal volume : 0.1 µL

Ordering information for CMA 11

  • Number of probes per package : 3
  • Membrane: Cuprophane
  • cut-off 6000 Daltons
