CMA 20 – Tissue

Catégorie :

Description

  • soft, non-metallic construction
  • ideal for cell metabolism studies
  • easy implantation procedure
  • 20 000 and 100 000 Daltons cut-off

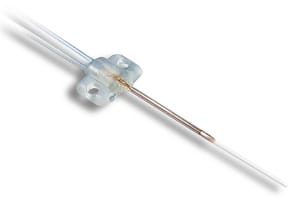

The CMA 20 Microdialysis Probe is designed for dialysis experiments in moving soft tissues such as muscle, heart, skin and adipose tissue, as well as in blood, vitreous fluid of the eye, etc. As with the other models, the probe is of concentric construction, but is made completely from plastic materials. Due to its flexibility, the probe must be implanted in the tissue with the help of a steel needle and a split tubing – the Introducer. The membrane is available in both 20 000 and 100 000 Daltons cut-off.

The CMA 20 Microdialysis Probes are guaranteed for single use, however, with proper care, they may be reused several times. Complete instructions are included in each package.

Technical information for CMA 20

  • Membrane lenght PAES 4 or 10 mm
  • Membrane lenght PES 4 or 10 mm
  • Membrane diameter 0.5 mm
  • Probe length (shaft+membrane) 24 mm
  • Polyurethane shaft diameter 0.77 mm
  • Inlet internal volume 1.4 µL
  • Outlet internal volume: 0.3 µL
    4 mm membrane 3.2 µL
    10 mm membrane 2.6 µL
  • 200 mm Inlet tubing (blue) 3.6 µL
  • 200 mm Outlet tubing (transp.) 3.6 µL

Ordering information for CMA 20

3/pkg + 3 Introducers + 9 Split Tubing
Membrane: Polyarylethersulphone (PAES)
cut-off 20 000 Daltons

Ref No.
8010435 CMA 20 Elite Microdialysis Probe with membrane length – 4 mm
8010436 CMA 20 Elite Microdialysis Probe with membrane length – 10 mm
———————————————————————————————-
3/pkg + 3 Introducers + 9 Split Tubing
Membrane: Polyethersylfone (PES)
cut-off 100 000 Daltons

Ref. No.
830 9670 CMA 20 Microdialysis Probe with membrane length – 4 mm
830 9671 CMA 20 Microdialysis Probe with membrane length – 10 mm
