Cadre stéréotaxique large

Description

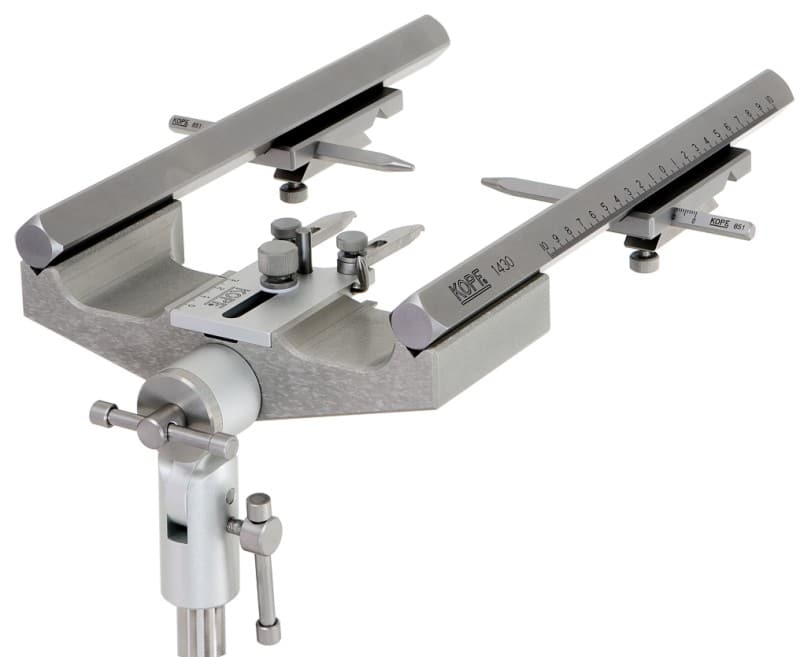

MODEL 1430 – Cats and Monkeys

Model 1430 Stereotaxic Instrument is a general purpose, heavy-duty research instrument. Its superior rigidity, large frame bars and precision bearing surfaces assure absolute alignment of laboratory animals for indefinite periods of time.

A/P Bar(s) – 18.70 mm square
A/P Bar length – 30.50 cm
A/P Bar calibration – 100 mm each side of zero (ear bar centerline)
Frame Bar centerline distance – 17.78 cm
A/P zero to posterior end of bar -12.08 cm
Ear Bar Locator position – A/P zero

MODEL 1530 – Dogs and Monkeys

Model 1530 Stereotaxic Instrument is a rigid, heavy duty unit that enables precise alignment of laboratory animals for stereotaxic surgery. Modular in design it can be used with a wide variety of adaptors. Animals from the size of a beagle dog down to and including mice, can be placed with the same ease and precision. This is our most versatile stereotaxic instrument.

A/P Bar(s) – 18.70 mm square
A/P Bar length – 37.47 cm
A/P Bar calibration – 100 mm each side of zero (ear bar centerline)
Frame Bar centerline distance – 17.78 cm
A/P zero to posterior end of bar -12.08 cm
Ear Bar Locator position – A/P zero and 5 cm anterior
