Cadre compatible IRM Large

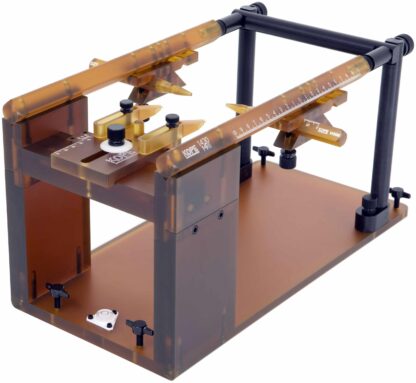

Model 1430M MRI Stereotaxic Instrument
is designed to successfully stabilize a cat or monkey for stereotaxic surgery. The unit can be repositioned into a MRI device without generating electromagnetic interference.

A/P Bar(s) – 18.70 mm square

A/P Bar length – 30.50 cm

A/P Bar calibration – 100 mm each side of zero (ear bar centerline)

Frame Bar centerline distance – 17.78 cm

A/P zero to posterior end of bar – 12.08 cm

Ear Bar Locator position – A/P zero

Base Plate – 16½ » x 8″
