Description

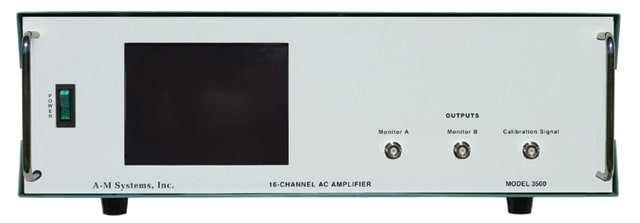

A-M Systems is proud to introduce our new Model 3500 16-Channel Extracellular Differential AC Amplifier.
In response to many inquiries for a larger version of our popular Model 1700 4-Channel Differential AC Amplifier, we have developed this unit. The Model 3500 has 16 independent channels, a front panel touch screen, computer control capabilities and a built-in calibrator. In addition, users can quickly monitor on an external oscilloscope the activity on any two channels.Multiple instruments will be controllable by a single computer program, enabling the setting of critical parameters on as many channels as you need.
Compared to the Model 1700, the Model 3500 has:
- More gain settings and increased gain range
- More high pass filter settings and increased high pass range
- More low pass filter settings and increased low pass range
- TTL Control of instrument mode
- Twin stimulation busses to pass current
- Channel Monitors
- Built-In Calibration signal
- Common Reference Bus
- Blanking
- PC control capability
- MATLAB® and LabVIEW SDK and drivers available
- Less rack space utilized for 16 channels
Spécifications
Noise
- Voltage, fB = 10 Hz-10 kHz, typical: 1.0 µV, p-p
Offset Voltage
- Average Drift , typical: ±4.0 µV/Deg C
- Average Drift , maximum: ±30.0 µV/Deg C
Bias Current
- Initial Bias Current, maximum: ±0.4 nA
Offset Current
- Input Offset Current, maximum: ±0.4 nA
Input Impedance
- 1012 Ω || 4 pF
Inter-channel Crosstalk
- 100 dB at 1 kHz
Input Voltage Size
- VDC: 1 Volt
- VAC: Gain / 10 Volts
- Commmon Mode Rejection (CMR): 100 dB
Rated Output
- Voltage Output: ±11 V
- Output Resistance: >100 Ωs
Low Cut-Off Filter
- Cut-Off Frequencies: 0.3, 1.0, 3.0, 10.0, 30.0, 100, 300, 500 Hz
- Cut-Off Rate: 40dB/decade
High Cut-Off Filter
- Cut-Off Frequencies: 0.1, 0.3, 0.5, 1.0, 3.0, 5.0, 10.0, 20.0 kHz
- Cut-Off Rate: 40 B/decade
Notch Filter
- Center Frequency: 50 Hz or 60 Hz
- Rejection: >35 dB
Gain
- 13 values from x2 to x20,000
