Amplificateur différentiel AC

Catégories : ,

Description

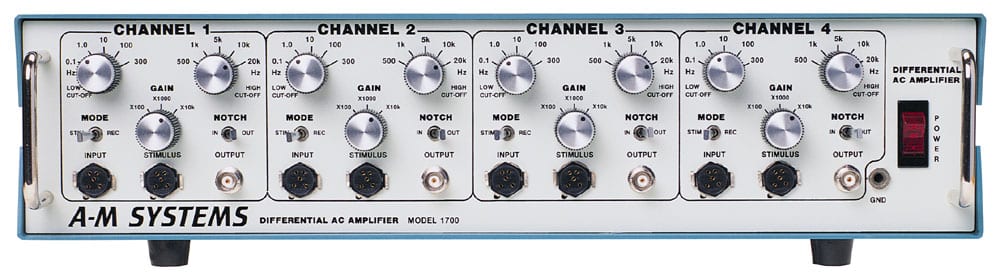

The Model 1700 Differential AC Amplifier is intended for research or teaching applications requiring extracellular neurophysiological recording from excitable tissue, such as nerve or muscle, and is camplable of making EMG, EEG, EKG and ERG recordings.

The Model 1700 contains 4 independent amplifiers plus a power supply in a single enclosure enabling several channels to be recorded simultaneously. Also, combining four amplifiers in a single instrument reduces the construction cost and these savings are passed on to you.

Each amplifier contains a high-gain, low-noise differential stage followed by low-frequency, high frequency, and notch filters. A connection is also provided for a stimulator input so that recording or stimulating through an electrode is possible.

  • Gain selections include x100, x1,000, and x10,000
  • Low noise (1.0 µV peak to peak)
  • High common-mode rejection (> 70 dB at 60 Hz)
  • High line frequency rejection with notch filter (>110 dB at 60 Hz)
  • High input impedance (100,000 MΩ)
  • Low input bias current (3 pA typical; 20 pA maximum)
  • Driven cable shield for reduced capacitance
  • Adjustable low and high frequency filters
  • Notch filter for 50 or 60 Hz interference
  • Power supply may be set for 110 VAC at 60 Hz or 220 VAC at 50 Hz
  • Includes standard 3 year warranty

Spécifications

Noise

  • Voltage, fB = 10 Hz-10 kHz, typical: 1.0 µV, p-p

Offset Voltage

  • Average Drift , maximum: ± 30.0 µV/Deg C

Bias Current

  • Initial Bias Current, maximum: ± 0.4 nA

Offset Current

  • Input Offset Current, maximum: ± 0.4 nA

Input Impedance

  • 1012 Ω || 50 pF

Inter-channel Crosstalk

  • 90 dB at 1 kHz

Voltage Range

  • x100: .11 VAC or .11 VDC ± 5%
  • x1000: .011 VAC or .11 VDC ± 5%
  • x10000: .0011 VAC or .11 VDC ± 5%
  • Commmon Mode Rejection (CMR): 75 dB

Slew Rate

  • 2 V/µS

Rated Output

  • Voltage Output: ± 11 V
  • Current Output: 5 mA
  • Output Resistance: >5 Ωs

Low Cut-Off Filter

  • Cut-Off Frequencies: 0.1, 1.0, 10.0, 100, 300 Hz
  • Cut-Off Rate: 40 dB/decade

High Cut-Off Filter

  • Cut-Off Frequencies: 0.5, 1.0, 5.0, 10, 20 kHz
  • Cut-Off Rate: 40 dB/decade

Notch Filter

  • Center Frequency: 50 Hz or 60 Hz (factory preset)
  • Rejection: >35 dB
