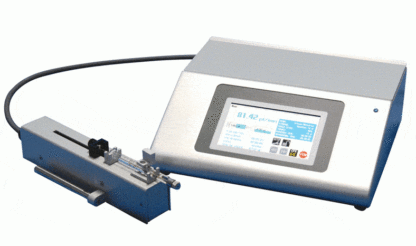

Pousse-seringue Stéréotaxie Legato 130

Description

Single syringe infuse/ withdraw with program option for 2 programs. 50 steps each. Holds one syringes from 0.5µl to 1000µl. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features:

  • Holds one syringe from 0.5µl to 1000µl
  • High resolution color touch screen
  • Unparalled ease of use
  • Touch pad « lock » feature
  • LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 11 lbs linear force
  • Advanced microstepping techniques
  • Built in RS485 interface
  • USB port
  • I/O & TTL interface
  • Continuous mode of operation
  • Spill dam
Specifications
Accuracy:
  • ± 0.5%
Reproducibility
  • ± 0.05%
Syringes (Min/Max)
  • 0.5µl to 1000µl
Flow Rate:
  • Minimum (0.5 µl syringe): 3.66 pl/min
  • Maximum (1000µl syringe): 3.818 ml/min
Display
  • 4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory
  • Stores all Settings
Connectors:
  • RS485 – IEEE-1394 6 pos
  • USB – Type B
  • I/O & TTL – 15 pin D-Sub Connector
  • Footswitch – mini phono jack
Linear Force (Max)
  • 5 kg (11 lbs) @ 100% Force Selection
Drive Motor
  • 1.8° Stepper Motor
Motor Drive Control
  • Microprocessor with 1/16 microstepping
Number of Microsteps
per one rev.of Lead Screw
  • 3,200
Step Rate – Minimum
  • 27.5 sec/ustep
Step Rate – Maximum
  • 52 usec/ustep
Pusher Travel Rate – Minimum
  • 0.433 µm/min
Pusher Travel Rate – Maximum
  • 228.97 mm/min
Input Power
  • 12-30 VDC
Input Power Connection
  • 2.5mm ID x 5.5mm OD male plug
Power
  • 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions
  • 22.6 x 17.78 x 9.32 cm (9 x 7 x 3.67 in)
Weight
  • 1.96kg (4.32 lbs)
Operating Temperature
  • 4 degree C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature
  • -10 degree C to 70 degree C (14 degree F to 158 degree F)
Humidity
  • 20% to 80% RH non condensing
Mode of Operation
  • Continuous
Classification
  • Class 1
Pollution Degree
  • 1
Installation Category
  • 11
Regulatory Certification
  • CE, EU RoHS
