Electromètre intracellulaire

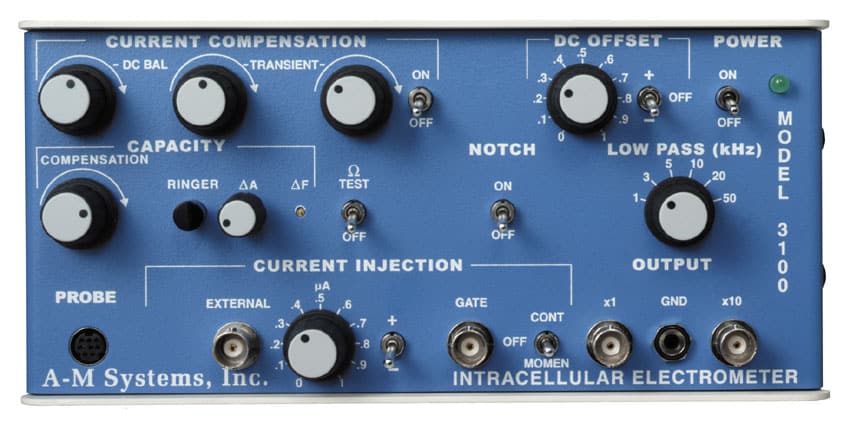

Intracellular Electrometer
Code produit : Model 3100
Marque/Fournisseur : A-M Systems

Description

The Model 3100 includes:

  • Operator’s manual
  • Rack mount hardware
  • Remote international power supply

Note: For proper operation, the purchase of a Model 3100-compatible headstage (Catalog#: 920500) is required. A Model 3100 Mini Headstage will be automatically added when you add a Model 3100 to cart.

Please note that A-M Systems instruments are not approved for use with human subjects in either a clinical or research environment.

Spécifications

  • Noise (10 Hz – 50 kHz): 18 µV, rms shorted; < 350 µV, 20 MΩ source
  • Input impedance: 1013 Ω; capacitance adjustable to zero
  • Bias current: Adjustable to zero
  • Voltage gain: x1 and x10
  • Capacity Compensation: -4 pF–35 pF
  • DC Offset: ±1 V
  • Max internal current: 1 µA
  • External current: 100 nA/V; 10 V maximum
  • Electrode test: 100 Hz, 10 nA; (i.e. 10 mV/MΩ electrode resistance)
  • Ringer: 0 – 10 V biphasic, 2 – 8 kHz
  • External power supply for low noise
  • Custom settings available—call for details!
