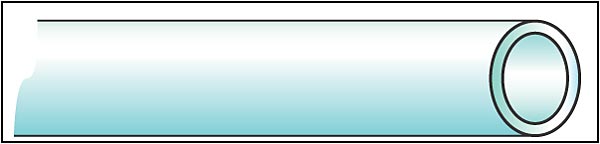

Clark Borosilicate Thin Wall

Catégorie :

Description

The properties of borosilicate glass make it the most popular material among researchers for the fabrication of electrodes and micro-pipettes.

  • High quality borosilicate glass
  • Outside diameters available in 1.0, 1.2, and 1.5 mm
  • Ratio of outside to inside diameters preserved up to the pipette tip after pulling
  • Economical

The low softening temperature of this glass combined with its mechanical strength, chemical resistance, high electrical resistivity, and ability to withstand thermal stress make these capillaries the most widely used in the world.

Thin wall Clark borosilicate capillaries are offered in a variety of outer and inner diameters all without an inner filament.

Micropipettes and microelectrodes manufactured from Clark glass are used primarily in intracellular and extracellular research. The end user can manufacture their own microelectrodes and micropipettes using standard pipette pulling and microforge techniques.

Specifications of the Clark Borosilicate Thin Wall

Composition 80.9% SiO2, 12.9% B2O3,
4.4% Na2O, 1.8% Al2O3
Softening Temp 815°C
Dielectric Const 4.7

Wall Thickness: OD from 0.11
Tolerance ± 0.05 mm
